MIKODES VOX

A personal AI assistant that speaks first: it learns the user, runs their errands, and calls their mobile to tell them the result. Operator documentation for version 2.0.0.

1. Introduction

VOX is sold as source code. You — the operator — run it on your own server, with your own provider accounts, under your own brand. MIKODES does not operate anything: there is no licence server, no phone-home and no telemetry.

The same code runs in two ways:

What VOX does

• Profile. 12 onboarding questions build a 500-point profile in 16 categories. Every fact records its source (asked, corrected, inferred). Inferred facts are marked and can be deleted one by one or all at once with one click.
• Two-way phone calls over Twilio with barge-in (the assistant stops talking when you talk): Twilio → ElevenLabs speech-to-text → Anthropic Claude → ElevenLabs text-to-speech → Twilio, built on pipecat.
• Jobs that end in a call: research (Claude with web search, only real sources), desktop clean-up with preview, confirmation and undo, reminders, a morning briefing and wake-up rituals, and a mail watcher that calls when something important arrives (Gmail, read-only).
• Google Calendar (read; new events only as proposals you confirm) and MCP servers (registered with a mandatory licence field; write tools always wait for confirmation).
• SMS / WhatsApp to your own number, a fixed list of SMS commands, and inbound calls protected by a PIN.
• PC actions (single-user mode only): 17 file actions with plan → confirm → undo.

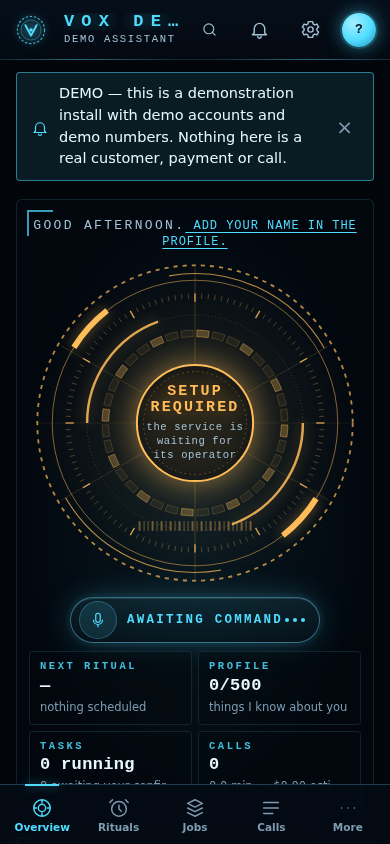

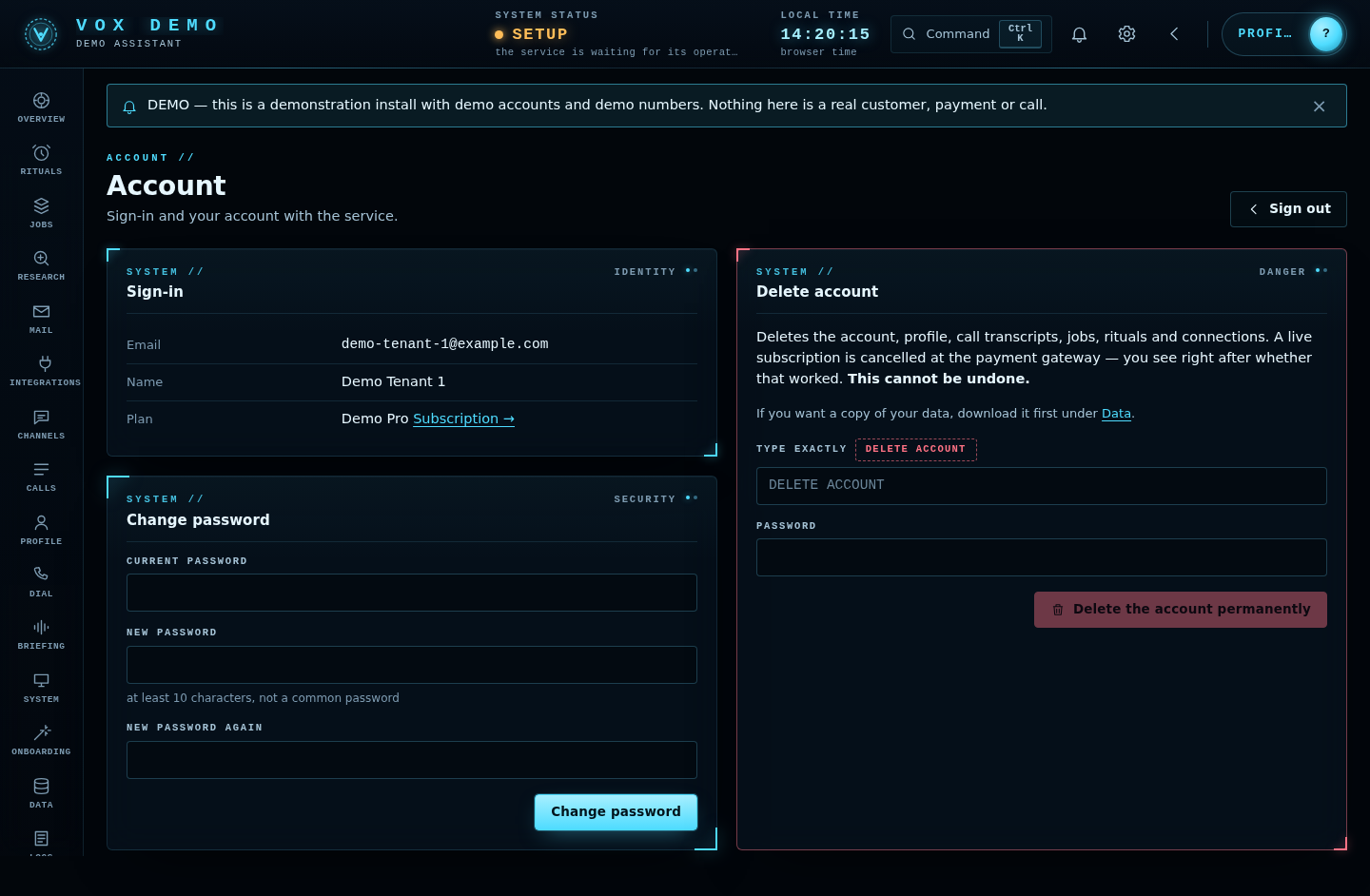

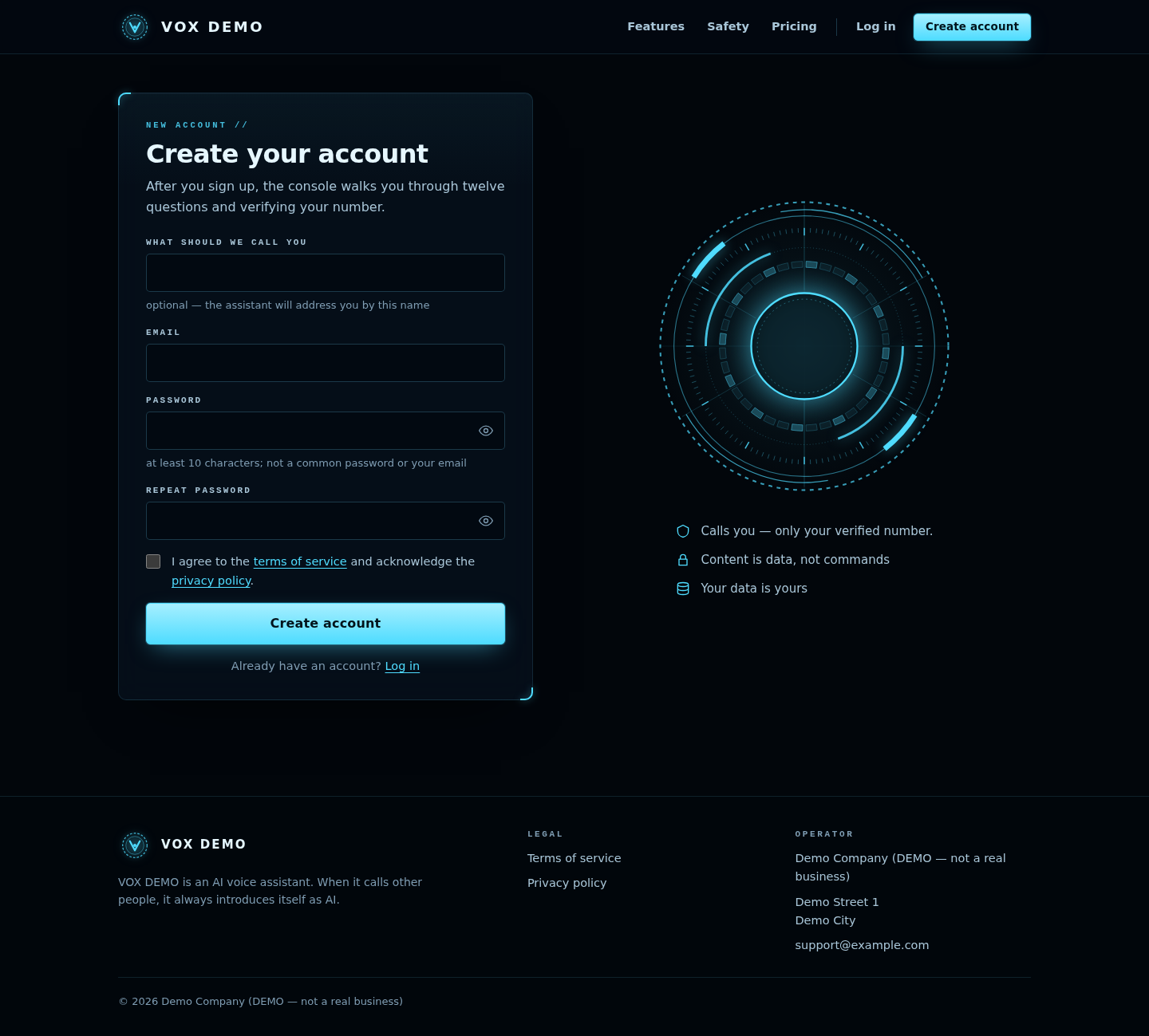

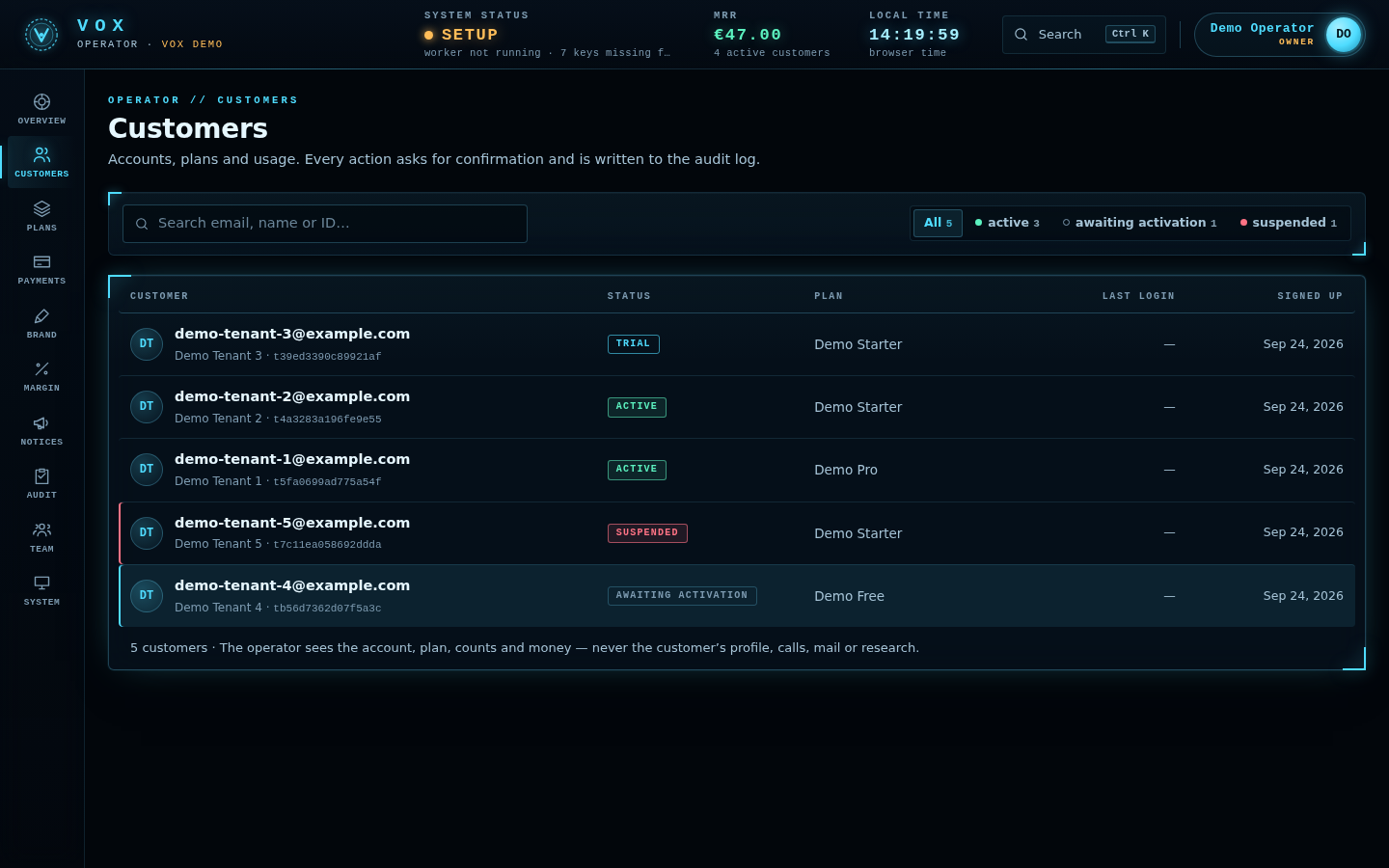

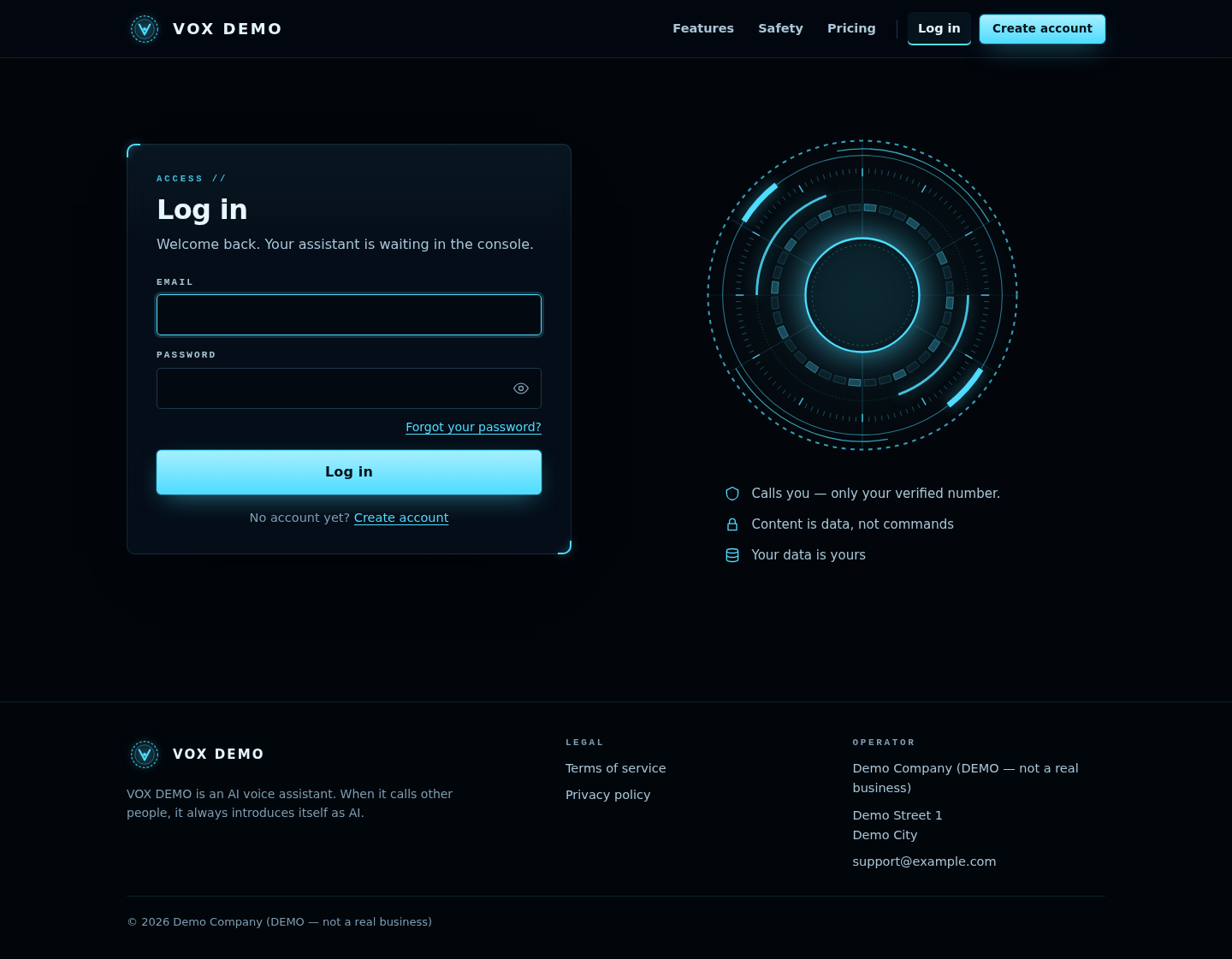

Screenshots

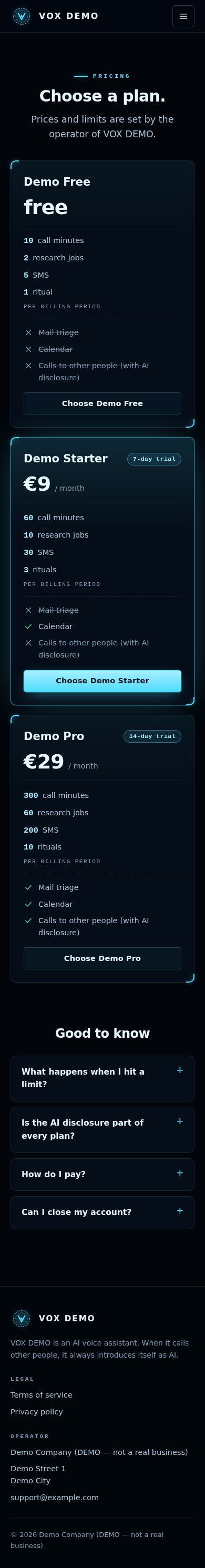

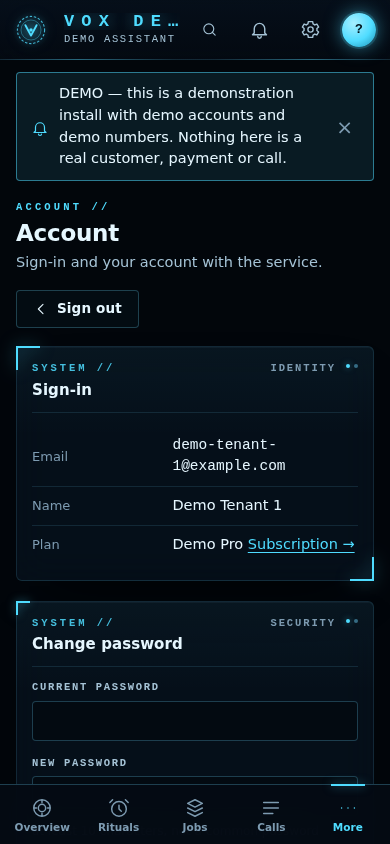

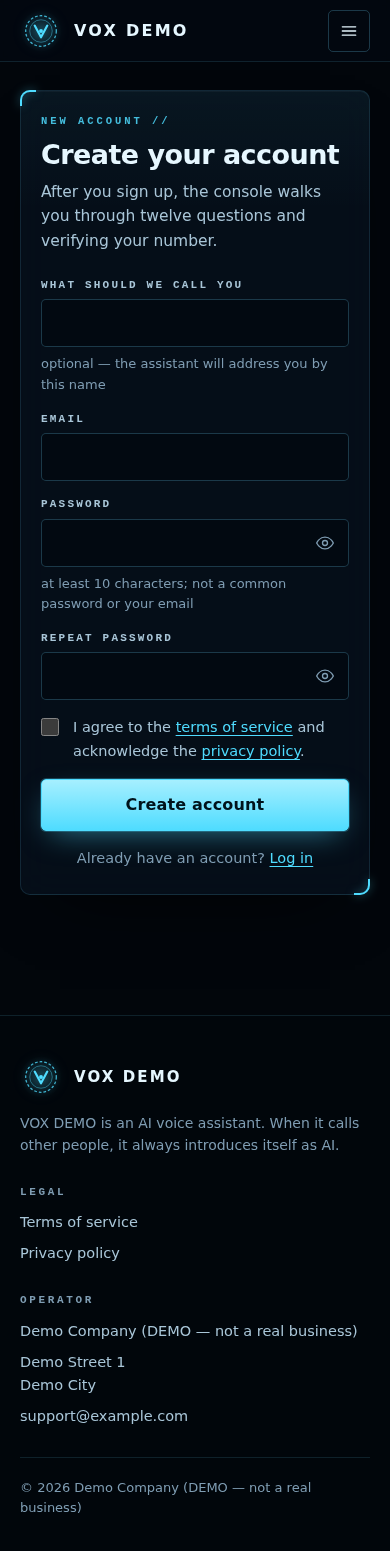

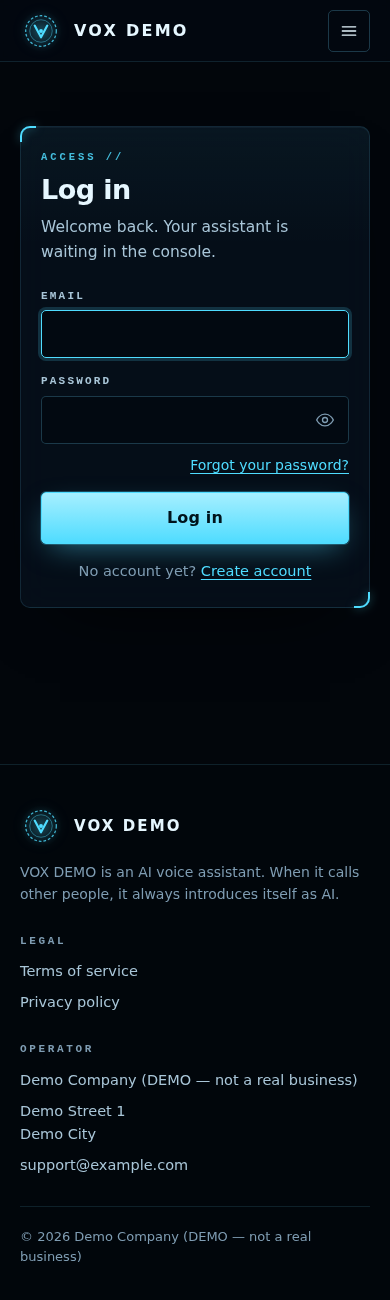

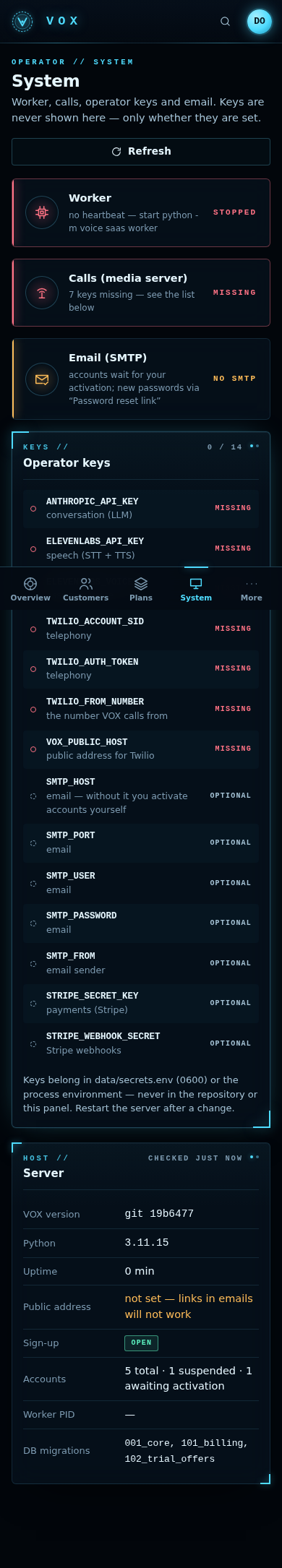

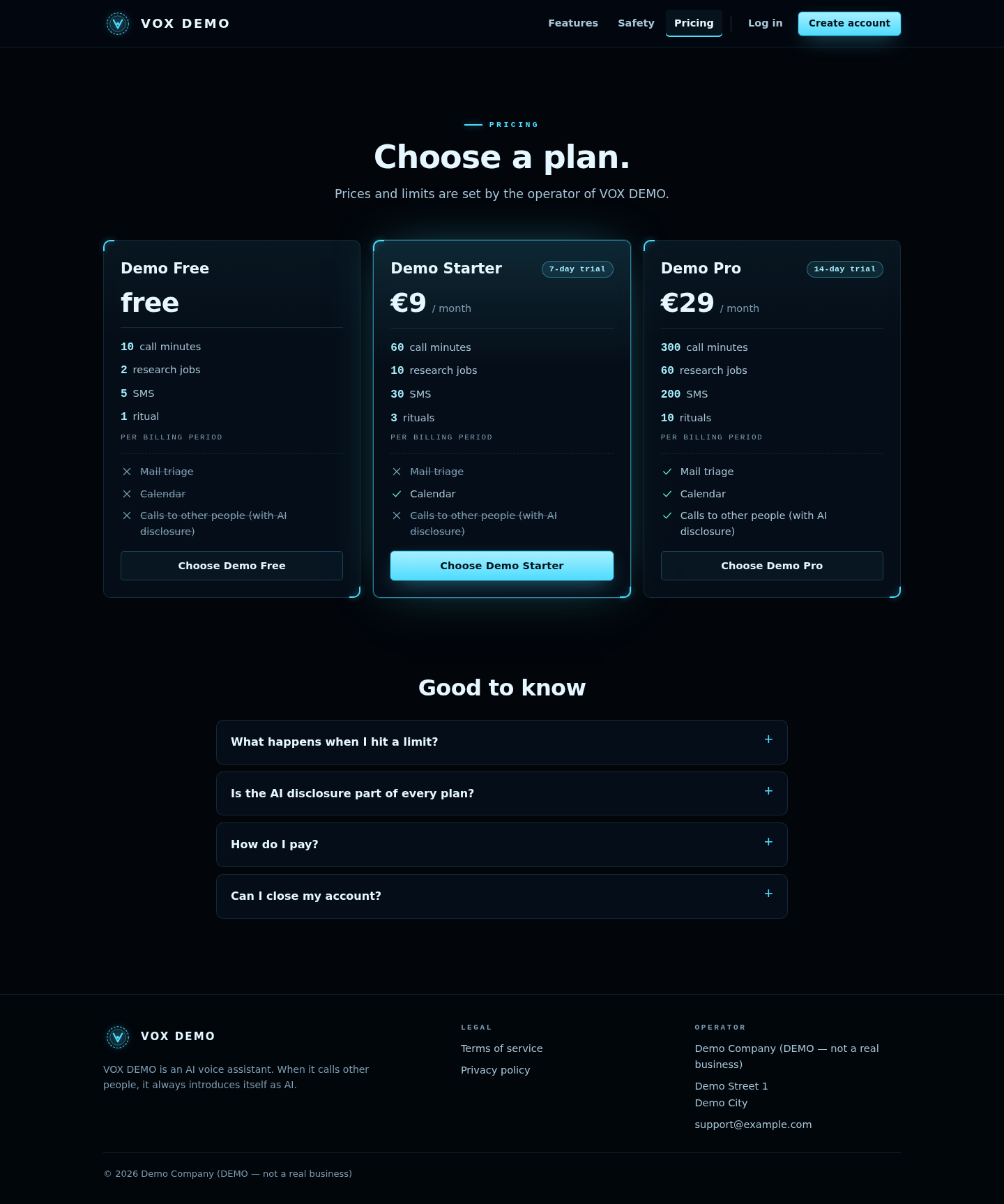

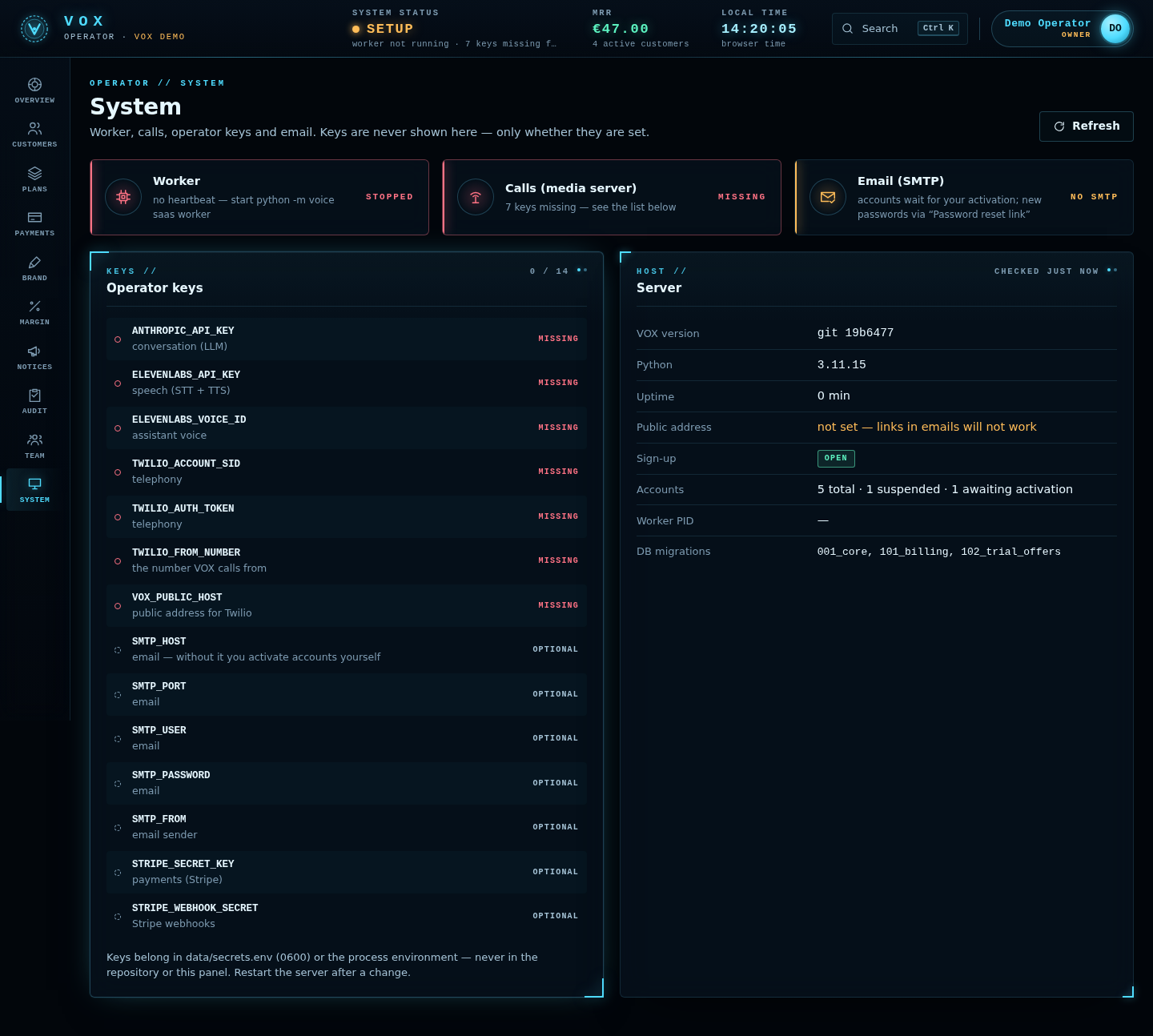

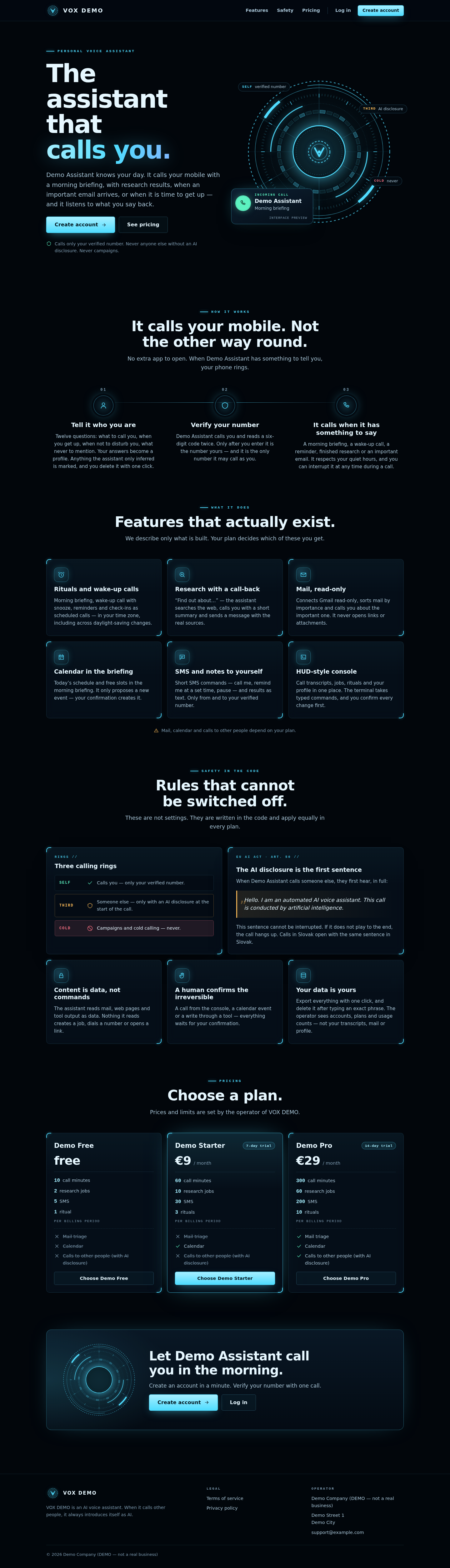

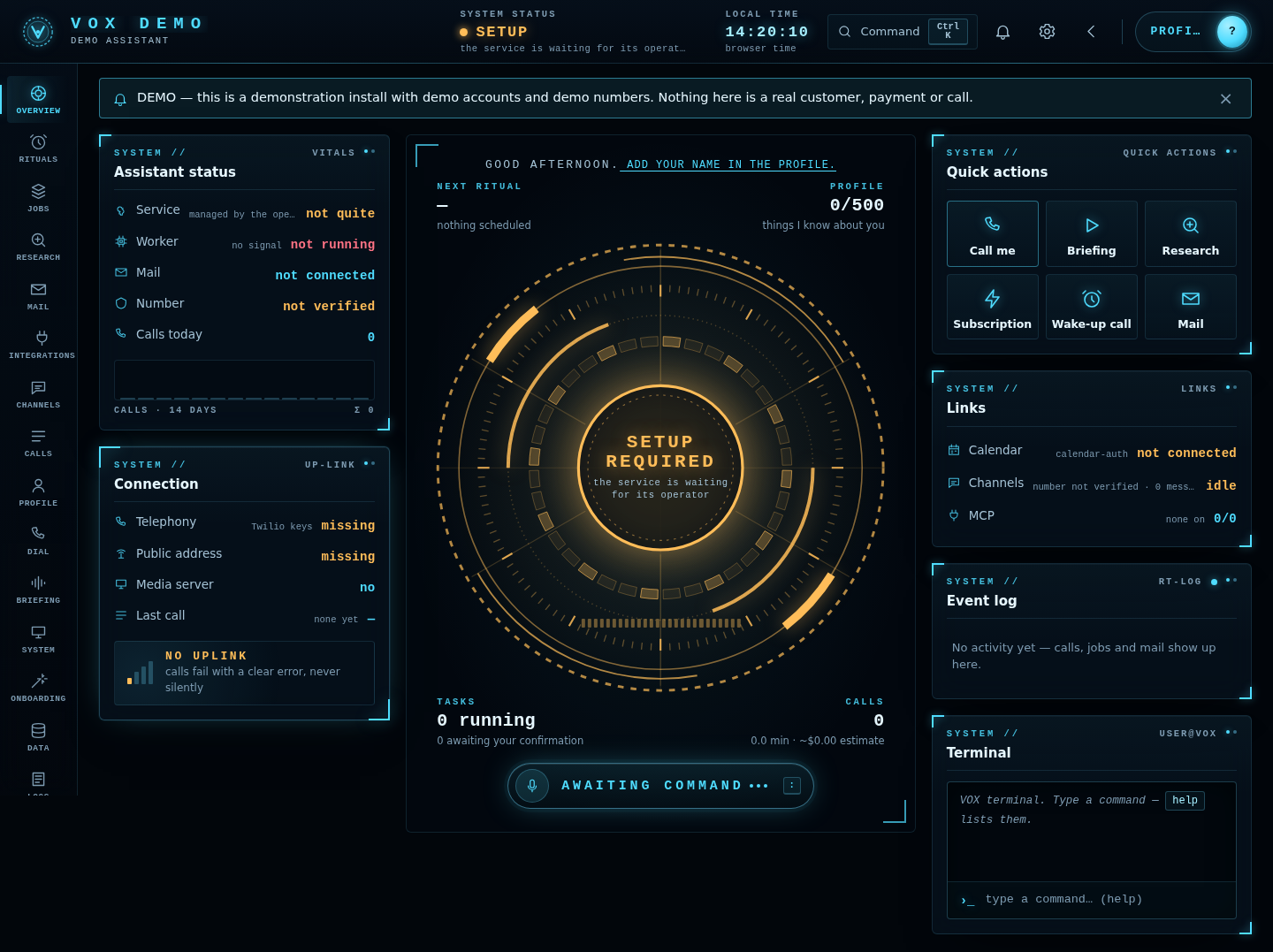

Taken from a labelled DEMO data directory (scripts/make_demo.py, scripts/screenshots.py), never from real data. Each screen exists at desktop width (-1440.png) and phone width (-390.png) in documentation/screenshots/.

2. Requirements

3. Installation

All python -m voice … commands run from the app/ directory with the virtual environment activated (bare metal), or inside the container (Docker).

3.1 Docker

One image with Python 3.11 and Node 20, no key inside. It runs as user vox (uid 10001) with a read-only root file system; only app/data (the named volume vox-data) is writable.

cp deploy/vox.env.example deploy/vox.env && chmod 600 deploy/vox.env   # optional: keys can also go in the console
docker compose up -d --build
docker compose logs vox | grep "VOX admin"           # console URL with its token (single-user mode)
docker compose run --rm vox node src/run.js           # the 12 onboarding questions
docker compose run --rm vox python -m voice check     # what is missing — no network, no key

The compose file runs single-user mode (python -m voice up). For SaaS mode, replace the service command and the health check, e.g. in a docker-compose.override.yml:

services:
  vox:
    command: ["python", "-m", "voice", "saas", "--host", "127.0.0.1", "--port", "8080",
              "--serve-host", "127.0.0.1", "--serve-port", "8765"]
    healthcheck:
      test: ["CMD", "python", "-c", "import urllib.request as u; u.build_opener(u.ProxyHandler({})).open('http://127.0.0.1:8080/api/csrf', timeout=4)"]

Then create the database and your operator account inside the same volume:

docker compose run --rm vox python -m voice saas migrate
docker compose run --rm vox python -m voice saas create-operator --email you@example.com --role owner

PC actions in Docker work on the container's files, not the user's computer. MCP servers over stdio (uvx, npx) need tools the image does not contain; use HTTP MCP servers or extend the image.

3.2 Bare metal

deploy/install.sh                 # options: --python python3.11 · --dev (also installs the test tools)

The installer checks Python ≥ 3.11 and Node ≥ 20, installs @anthropic-ai/sdk from the lock file (npm ci --omit=dev --ignore-scripts), creates app/.venv, installs app/voice/requirements.txt, installs and verifies NLTK punkt_tab, runs python -m voice check and prints the next steps. It never asks for, reads or stores a key. Running it again is safe.

The same by hand:

cd app
python3 -m venv .venv
. .venv/bin/activate
pip install -r voice/requirements.txt
python -m voice setup-nltk                           # sentence-splitter data; without it the bot is silent
python -m voice check

setup-nltk options: --dir D (install elsewhere, then set NLTK_DATA to that directory), --from-zip Z (offline, from a zip downloaded elsewhere; the zip is pinned by SHA-256), --force.

Service units: deploy/systemd/mikodes-vox.service (server, system user vox, code in /opt/mikodes-vox, keys in /etc/mikodes-vox/vox.env) and deploy/systemd/mikodes-vox.user.service (your own Linux computer, so PC actions work on your files). Both run python -m voice up; for SaaS mode change ExecStart to python -m voice saas --host 127.0.0.1 --port 8080 --serve-host 127.0.0.1 --serve-port 8765. The units passed systemd-analyze verify but have not run on a real server.

3.3 Single-user mode

1. Answer the 12 questions: node src/run.js (from app/). Options: --answers file.json (scripted), --no-speak. On macOS the briefing is spoken aloud; elsewhere it is printed. This step never calls anyone.
2. Start everything: python -m voice up. It prints one line — VOX admin http://127.0.0.1:8766/#token=… — once the console really listens.
3. Open that URL, go to the setup section and enter the keys (chapter 4). The media server starts only when all seven required keys and the NLTK data are present, so restart up after entering them.
4. Verify your own number: Profile → verify number. VOX calls you (with the AI disclosure), reads a 6-digit code twice, and you type it in the console. Until then even a call to yourself is treated as a third-party call.
5. Place the first call: python -m voice dial --purpose "morning briefing", or the call section of the console.

3.4 SaaS mode

cd app && . .venv/bin/activate
python -m voice saas migrate                                     # create / upgrade data/saas/vox.db
python -m voice saas create-operator --email you@example.com --role owner
python -m voice saas --host 127.0.0.1 --port 8080 --serve-host 127.0.0.1 --serve-port 8765

One process serves the public site (/), each user's console (/app/) and the operator panel (/op/) on port 8080, runs the multi-tenant worker, and starts the media server on port 8765 when every required key is present. Ctrl+C stops everything. Put a TLS reverse proxy in front (5.4) and continue with chapter 5.

By default SaaS mode uses the same data directory as single-user mode, app/data/; point it elsewhere with --data-dir or VOX_DATA_DIR (for example python -m voice saas migrate --data-dir /srv/vox-data — give the same directory to every saas command). The database is <data>/saas/vox.db (0600) and each tenant lives in <data>/tenants/<tenant_id>/, exactly the single-user layout. Do not run up and saas on the same data directory at the same time.

3.5 Command reference

serve, admin, worker, up and saas (with its subcommands) also take --data-dir PATH (or VOX_DATA_DIR) to use another data directory than app/data; the other commands work on app/data only and refuse the option.

The CLI's own help and messages are in English. --help works on every command.

4. Keys (first run)

4.1 Where keys live

• The console (single-user: the setup section; each key has a live test for Anthropic, ElevenLabs, Twilio and Google) writes them to app/data/secrets.env, mode 0600, git-ignored. The console never shows a key back, only its last four characters.
• The process environment — deploy/vox.env for Docker (see deploy/vox.env.example), EnvironmentFile for systemd, or your shell. The environment wins over the file. The code does not read a .env file by itself.
• In SaaS mode every key is the operator's. Tenants never enter or see a key; setup routes answer 403 OPERATOR_ONLY in a tenant's console.

The worker re-reads the file on every round; the media server and the console token are read at start, so restart after changing them. A key that ever reached git is leaked — replace it.

4.2 Required for calls

python -m voice check lists all missing ones at once and exits with code 2.

4.3 Optional

The file path settings must point to a regular file (not a symlink) of at most 64 KB inside the home directory or the VOX data directory.

4.4 SaaS keys

4.5 Other variables

5. SaaS setup

Order that works: database and operator → keys → reverse proxy → Stripe → plans → Twilio number → branding → Google OAuth → SMTP → open sign-up.

5.1 Database and operator account

python -m voice saas migrate
python -m voice saas create-operator --email you@example.com --role owner

• migrate prints the database path, the migrations applied now and all applied migrations. Running it again is safe. saas and create-operator also migrate on start.
• Roles: owner (everything) and staff (accounts, announcements, audit and system status only — no plans, money settings, team or sign-up changes, no exports and no deletions). Add more operators later in the panel (team).
• Enable TOTP two-factor sign-in for every operator in the panel (RFC 6238 authenticator app).
• Passwords: at least 10 characters, checked against a list of common passwords, stored with scrypt. Five failed logins per 15 minutes per e-mail or IP answer 429.

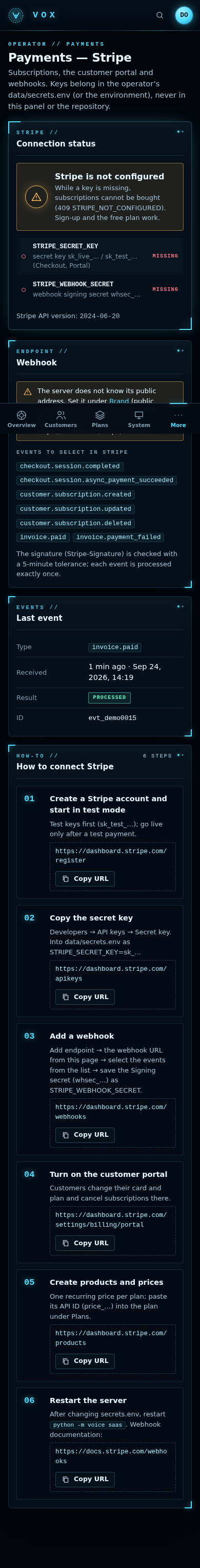

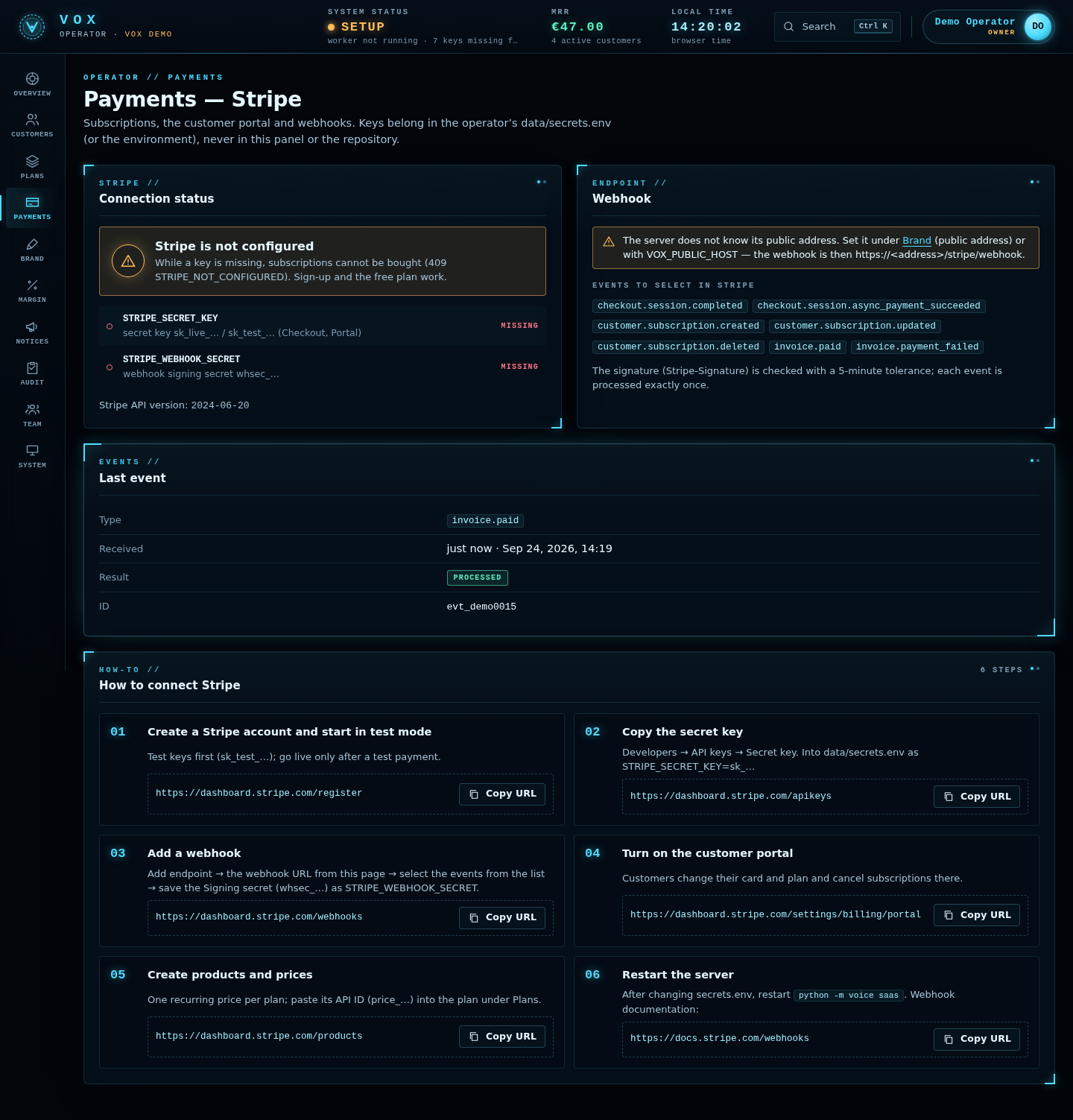

5.2 Stripe: products, prices, plans, webhook, Customer Portal

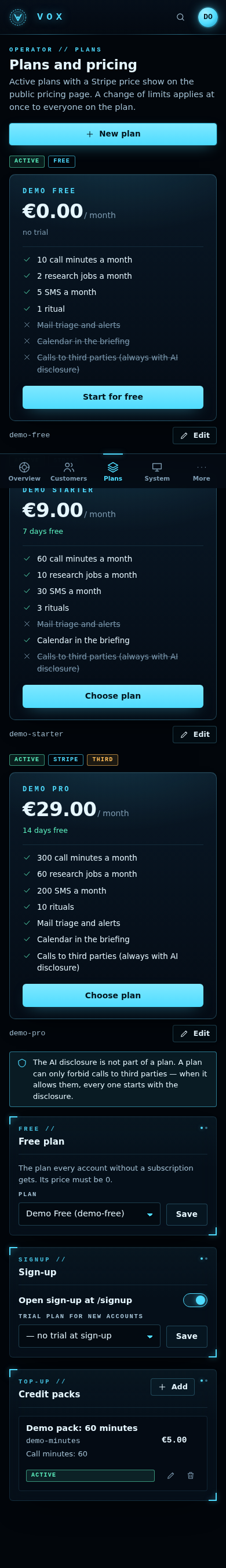

Products and prices → plans

1. In Stripe create a Product per plan with a recurring Price (monthly or yearly). Copy the price ID (price_…).

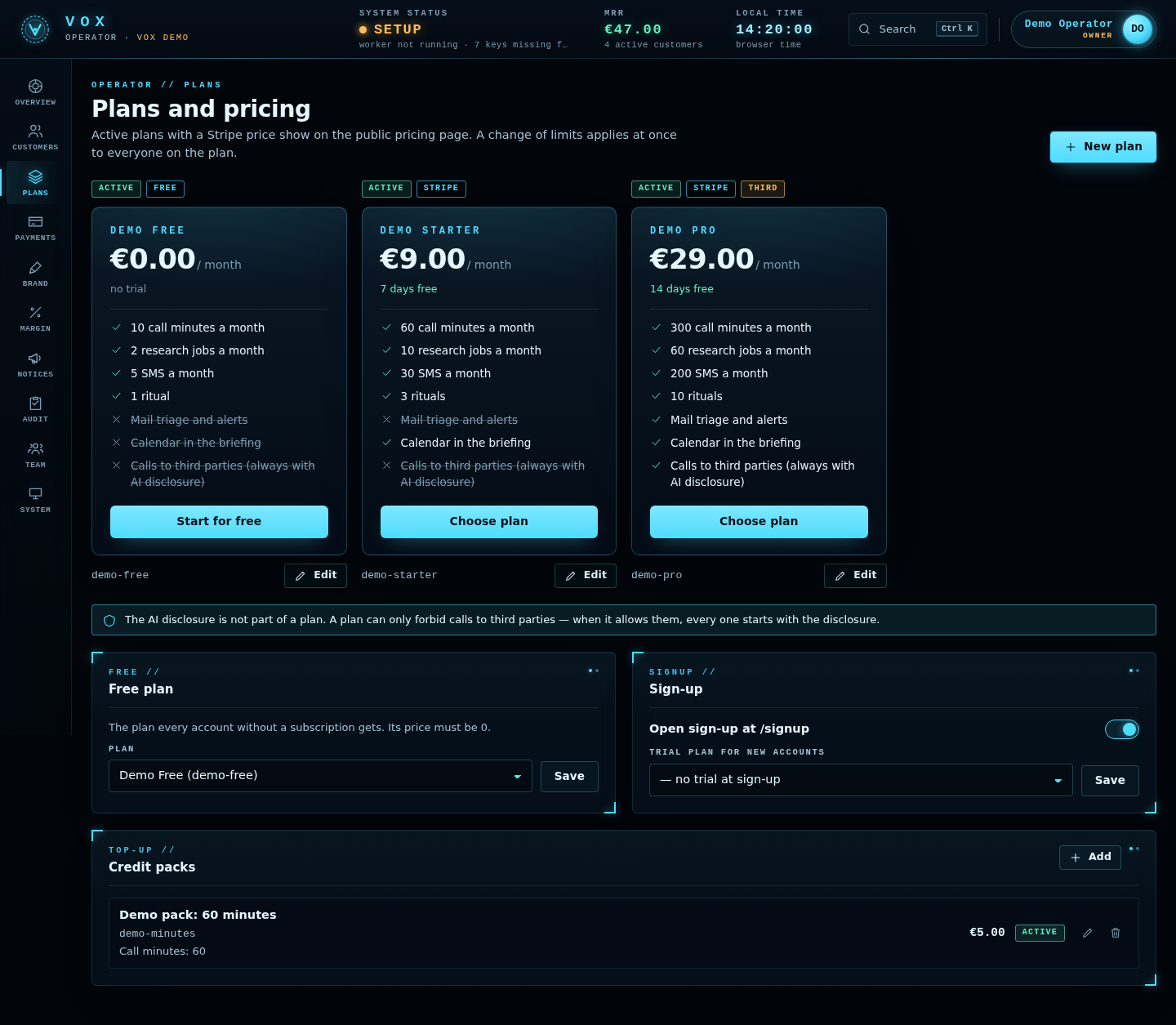

2. In the operator panel → Plans, create the matching plan: id, name, price, currency, interval (month or year), trial days, and the Stripe price ID. The limits are: call_minutes, research_jobs, sms, rituals (a number, or unlimited) and the switches mail_triage, calendar, third_party_calls.
3. Optionally mark a price-0 plan as the free plan (what a tenant without a subscription gets), define prepaid credit packs (one-time Checkout; the amount is set in VOX, no Stripe price needed), a markup per cost component, and an exchange rate so margins in USD can be computed.

A tenant's plan follows only verified webhooks, mapped from the subscription's price ID through your plans. A price that no plan carries shows up as "unmapped" on the Stripe page of the panel. Subscription state: active/trialing → the plan; past_due → the plan for a 3-day grace period; canceled/unpaid → the free plan (or no limits at all).

Webhook

Stripe Dashboard → Developers → Webhooks → Add endpoint:

• URL: https://<your host>/stripe/webhook — the Stripe page of the operator panel shows the exact URL (from the branding base URL, else https://VOX_PUBLIC_HOST).
• Events to select (exactly the ones VOX handles): checkout.session.completed, checkout.session.async_payment_succeeded, customer.subscription.created, customer.subscription.updated, customer.subscription.deleted, invoice.paid, invoice.payment_failed.
• Copy the endpoint's signing secret into STRIPE_WEBHOOK_SECRET.

Every event is checked on the raw body (Stripe-Signature, HMAC-SHA256, 5-minute tolerance), processed at most once per event ID, and bodies over 1 MB are refused. Failed deliveries are listed on the Stripe page of the panel. VOX pins Stripe API version 2024-06-20 for its own requests.

Customer Portal

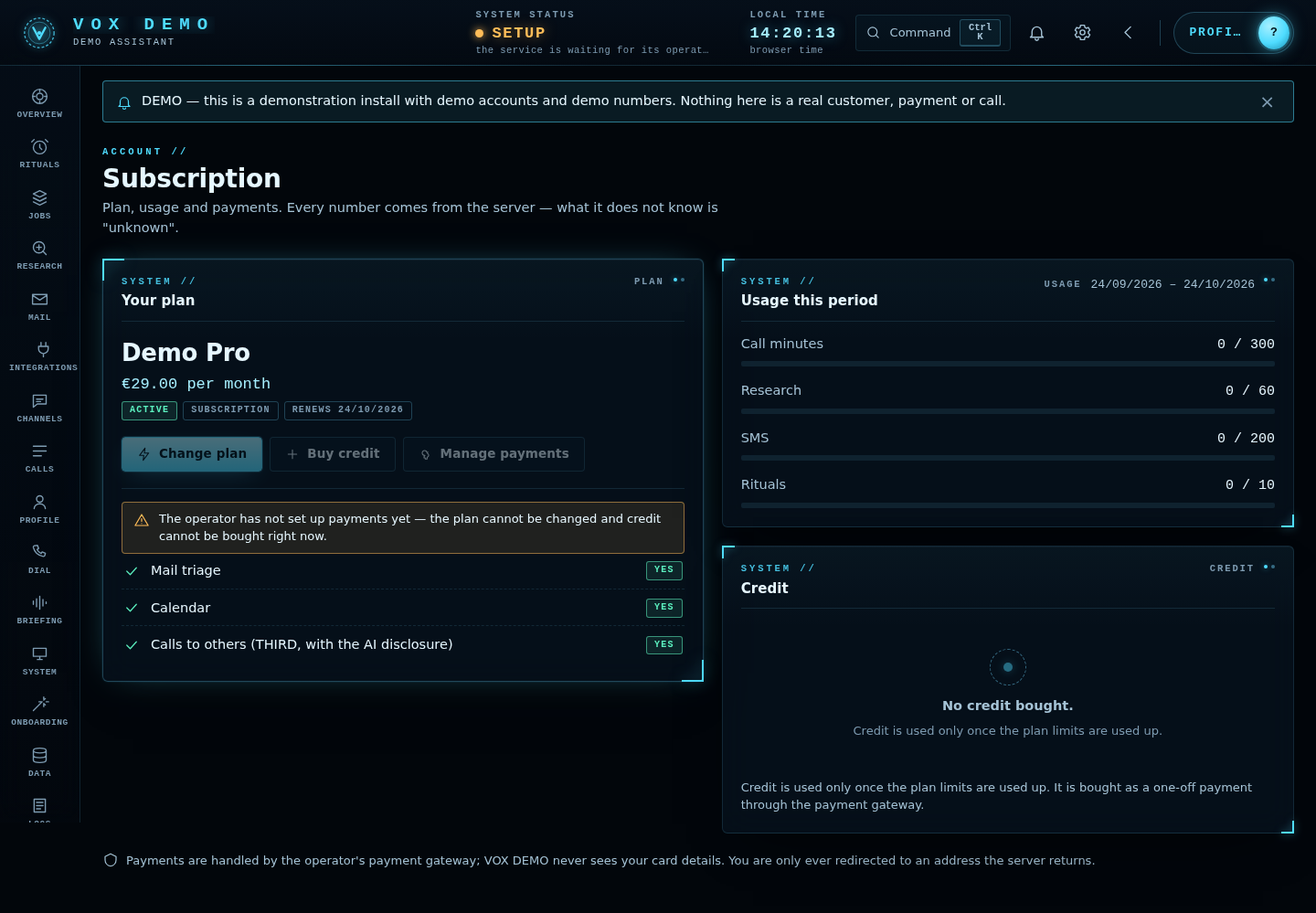

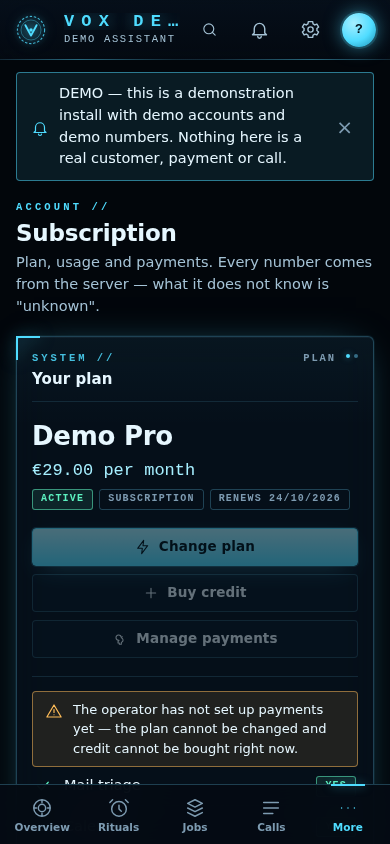

Tenants manage their subscription (payment method, cancel, switch plan) in Stripe's Customer Portal, opened from the subscription view of their console. Configure and save the portal once in the Stripe Dashboard (Settings → Billing → Customer portal) — VOX creates portal sessions with your default configuration. If you allow plan switching there, offer only prices that are mapped to a VOX plan.

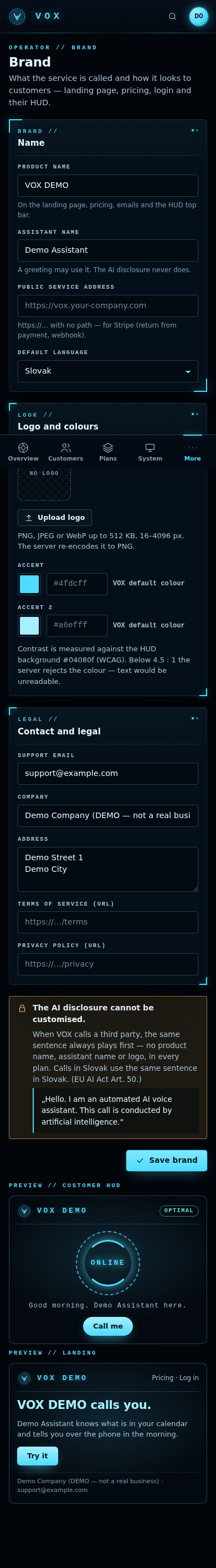

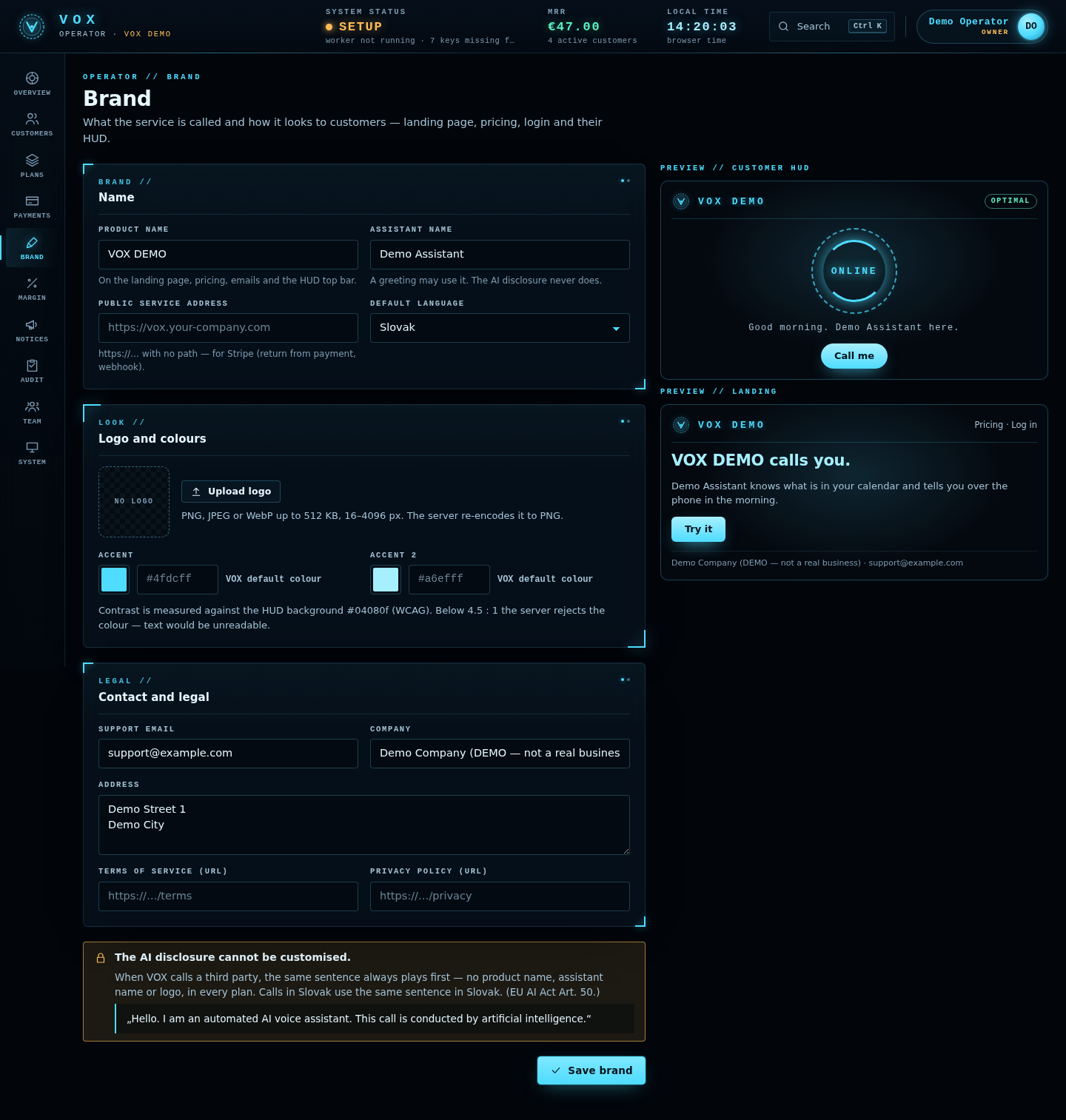

5.3 Branding and a custom domain

Operator panel → Brand: product name, assistant name, logo (PNG/JPEG/WebP ≤ 512 KB, re-encoded), two accent colours (contrast-checked), support e-mail, legal texts (company, address, terms URL, privacy URL), default language and the base URL of your site. The AI disclosure cannot be branded, renamed or edited — a branding field that tries is refused (DISCLOSURE_NOT_BRANDABLE).

A custom domain is your reverse proxy plus DNS. Use one host name for everything and set VOX_PUBLIC_HOST to it: Twilio webhooks and the Google OAuth redirect are built from VOX_PUBLIC_HOST, while Checkout return URLs and the webhook URL use the branding base URL. With one host, all of them agree and the login cookie is present when Google redirects back.

Other operator settings: sign-up on/off, and a plan whose trial new sign-ups start automatically.

5.4 Reverse proxy (Caddy or nginx)

The files in deploy/ (Caddyfile.example, nginx-vox.conf.example) are written for single-user mode: they forward only the media server's routes and answer 404 to everything else. For SaaS mode forward the media routes plus /call/status to port 8765, and everything else to the web app on port 8080. Paths must reach VOX unchanged — Twilio signs over the exact URL.

Caddy (automatic HTTPS)

vox.example.com {
	@media path /ws /sms /sms/status /voice /voice/pin /call/status
	handle @media {
		request_body {
			max_size 64KB
		}
		reverse_proxy 127.0.0.1:8765
	}
	handle {
		request_body {
			max_size 2MB
		}
		reverse_proxy 127.0.0.1:8080
	}
}

nginx

map $http_upgrade $vox_connection_upgrade {
    default upgrade;
    ''      close;
}
server {
    listen 443 ssl;
    server_name vox.example.com;
    ssl_certificate     /etc/letsencrypt/live/vox.example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/vox.example.com/privkey.pem;
    server_tokens off;

    location = /ws {
        proxy_pass http://127.0.0.1:8765;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $vox_connection_upgrade;
        proxy_set_header Host $host;
        proxy_read_timeout 3600s;
        proxy_buffering off;
    }
    location ~ ^/(sms|sms/status|voice|voice/pin|call/status)$ {
        client_max_body_size 64k;
        proxy_pass http://127.0.0.1:8765;
        proxy_set_header Host $host;
    }
    location / {
        client_max_body_size 2m;
        proxy_pass http://127.0.0.1:8080;
        proxy_set_header Host $host;
    }
}

Plus the usual port-80 server for the ACME challenge and the redirect to HTTPS, as in deploy/nginx-vox.conf.example. The 2 MB limit covers a logo upload (≤ 512 KB) and Stripe webhooks (≤ 1 MB).

The web app sets a strict Content-Security-Policy, HSTS (unless --insecure-http) and no-store on API answers by itself. It serves no third-party scripts, fonts or trackers.

5.5 The Twilio number: voice and SMS webhooks

Twilio Console → Phone Numbers → your number:

• /call/status is required for billing inbound minutes. Calls VOX places attach this status callback to each dial automatically; a call a tenant makes to the number is billed only if the number itself has the status callback set. Only the final completed status with its CallDuration is recorded, once per call, into that tenant's usage ledger.
• /sms/status (delivery reports) and /voice/pin (PIN entry) are set by VOX per message / per call — nothing to configure.
• Every webhook must carry a valid X-Twilio-Signature for https://VOX_PUBLIC_HOST<path> and your Account SID; anything else gets 403.
• In SaaS mode one number serves all tenants. An inbound call or SMS belongs to the tenant who verified the sending number (a number can be verified by one tenant only — 409 NUMBER_IN_USE). Unknown senders hear one polite sentence and the call ends; there is never an AI conversation with a stranger. Each tenant sets their own inbound PIN.
• Trial Twilio accounts only call verified numbers; the destination country must be enabled in Voice geographic permissions.

5.6 Google OAuth web client (tenants' Gmail and Calendar)

1. Google Cloud Console: enable the Gmail API and the Google Calendar API.
2. Credentials → Create credentials → OAuth client ID → type Web application.
3. Authorized redirect URI: https://<VOX_PUBLIC_HOST>/app/oauth/google/callback.
4. Download the JSON (it must contain a "web" section) and either set GOOGLE_OAUTH_WEB_CLIENT_FILE to its path (inside the home or data directory, a regular file ≤ 64 KB) or place it at data/saas/google_oauth_web_client.json.
5. Until Google verifies your app, add your users as test users on the OAuth consent screen.

Tenants connect from their console (/app/oauth/google/start). Scopes are exactly gmail.readonly, calendar.readonly, and calendar.events only when a tenant allows creating events. The state is bound to the session, single-use and valid for 10 minutes; PKCE is used. A plan without mail_triage / calendar cannot start the flow. Tokens are stored in the tenant's directory (0600).

5.7 E-mail (SMTP)

With SMTP_HOST, SMTP_PORT, SMTP_USER, SMTP_PASSWORD and SMTP_FROM set, sign-up sends a verification link (valid 48 hours) and "forgot password" sends a reset link (30 minutes). Without SMTP, new accounts stay pending until you activate them in the panel, and you create reset links for users from the panel.

Tenants' Telegram and e-mail. The same SMTP server — and, with TELEGRAM_BOT_TOKEN, TELEGRAM_WEBHOOK_SECRET and VOX_PUBLIC_HOST, your Telegram bot — also carry tenants' automatic messages, only ever to each tenant's own verified address or chat. Press System → Customer channels → Point the bot at this server once. Every message counts towards the plan's Telegram / e-mail messages limit (a plan saved before that limit existed has 0). Tenants see only whether the channel is set up — never your keys.

5.8 Running the service

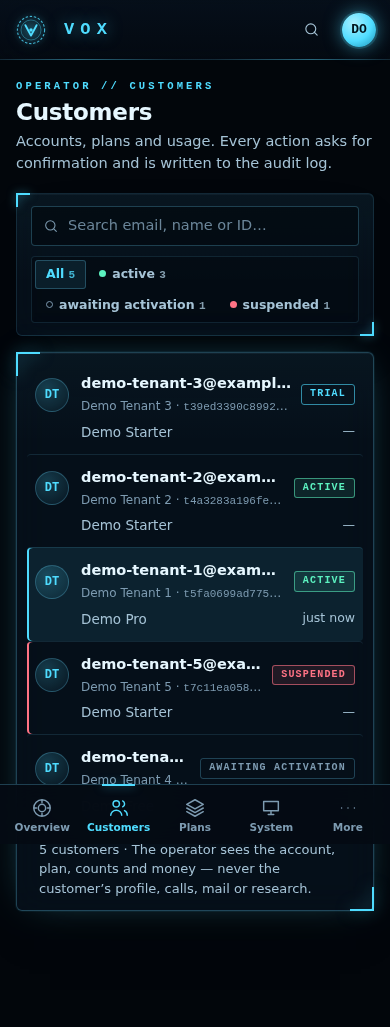

• Accounts: search, activate, suspend (the console answers 403, the worker skips the tenant, the media server refuses its calls), change plan, grant credits, export, delete.
• Privacy by default: the operator panel shows accounts, plans, usage counts and money — never profiles, transcripts, mail or research content.
• Quotas are checked before every dial, research job, SMS and ritual; exhausted → 402 QUOTA_EXCEEDED. A call does not start without minutes for the disclosure plus 60 seconds; when minutes run out during a call the assistant says one fixed sentence and hangs up — after the disclosure, never during it.

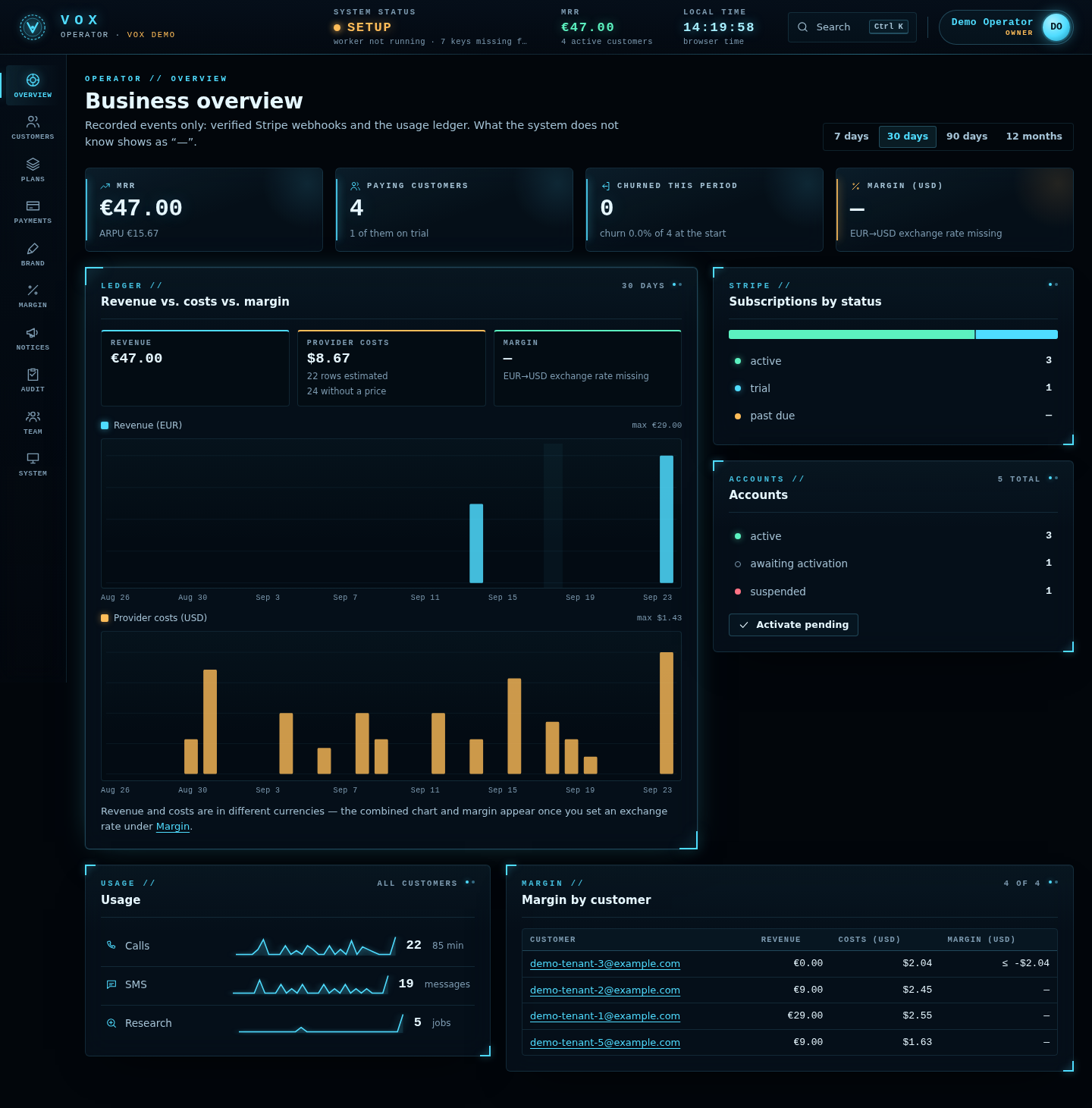

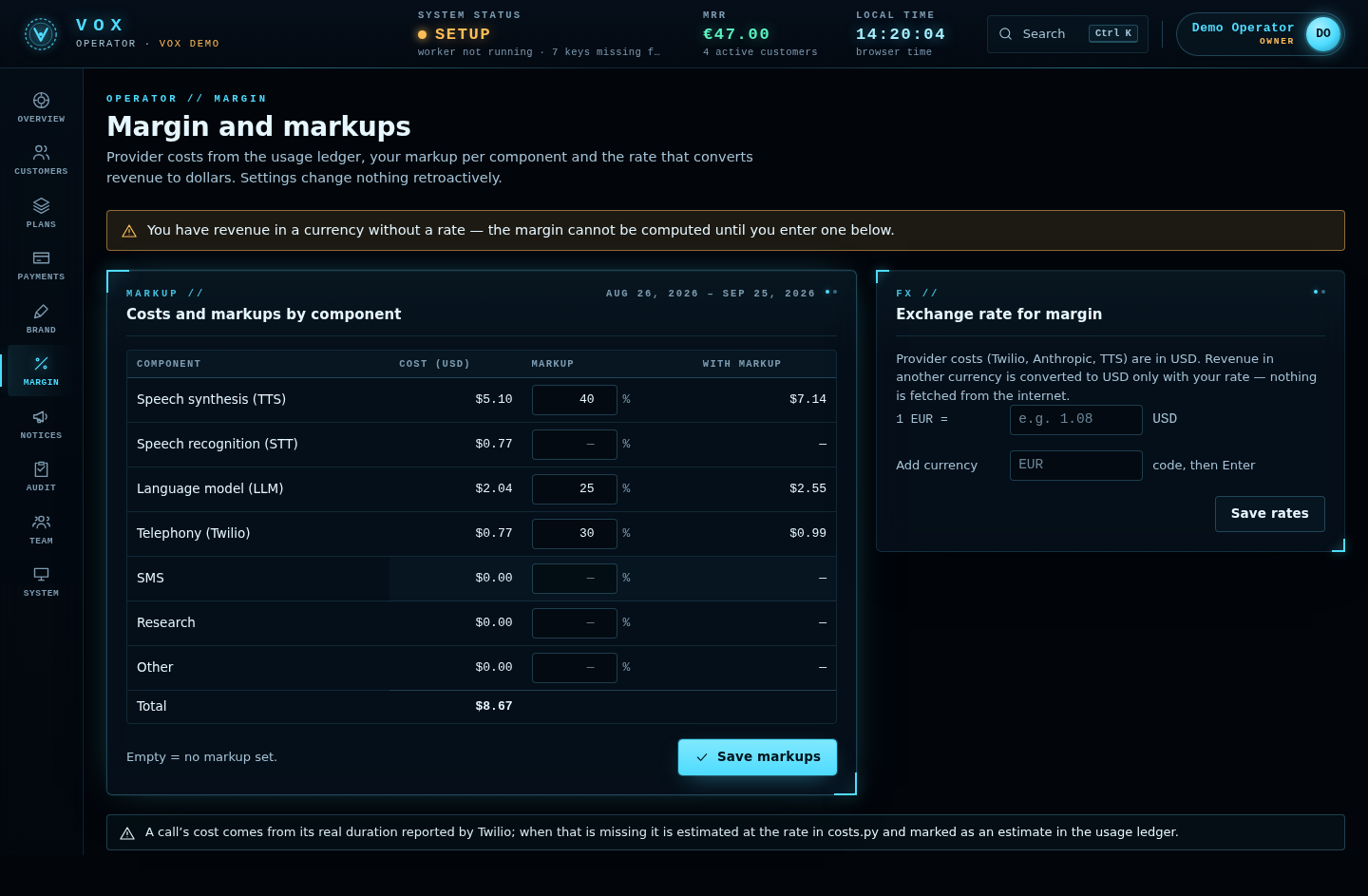

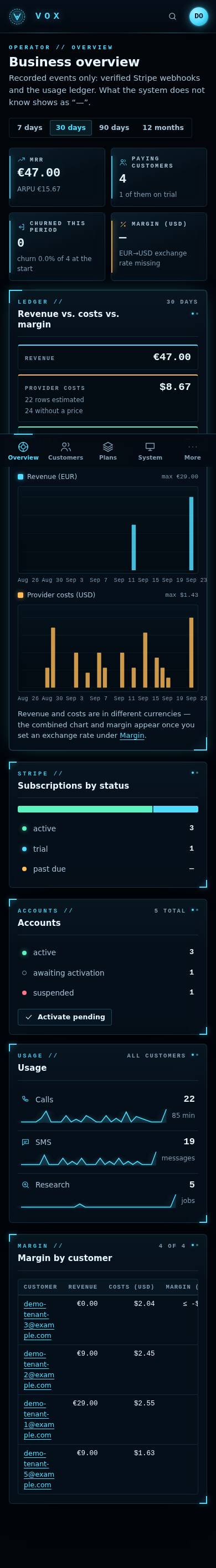

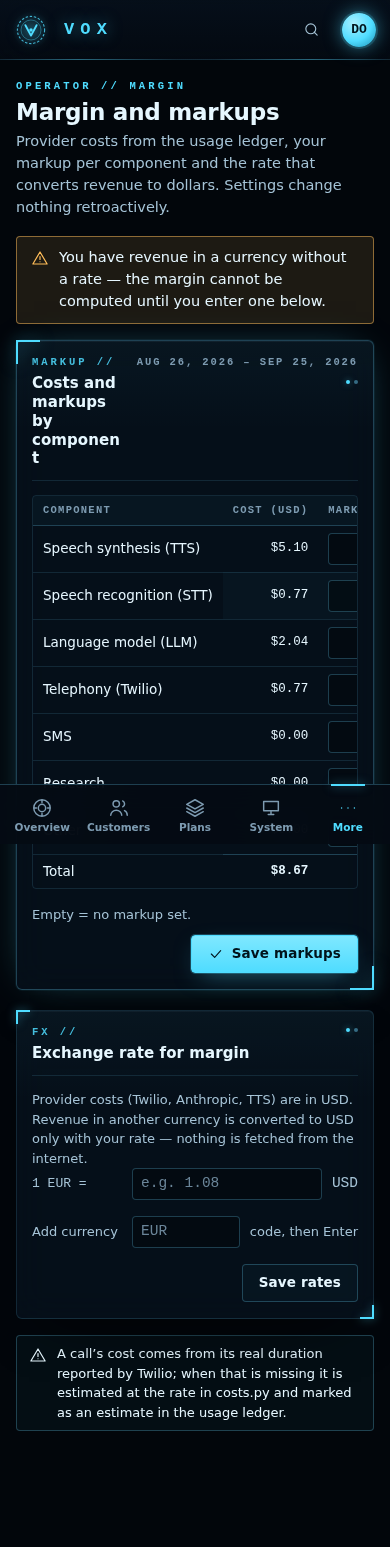

• Analytics (MRR, churn, ARPU, provider cost, revenue, margin) are computed only from recorded rows — webhooks and the usage ledger. Provider cost is an estimate from the per-minute model in app/voice/costs.py; what the panel cannot know it shows as "—".
• Announcements appear in every tenant's console.
• Tenants' consoles are the single-user console without operator-only functions: no key setup, no barge-in tuning, no MCP registry changes and no PC actions (a hosted server never touches its own files on a tenant's behalf).

6. Legal and compliance

6.1 The three call rings

The ring is derived, not declared: self only when the dialled number is exactly the verified own number; a typo, a placeholder or a number found in an e-mail is third_party. The media server recomputes the ring from the saved call plan when the stream connects and never takes it from the network. Uncertainty always falls towards the disclosure. Third-party callers get no tools: nothing a stranger says becomes an action. The rings are the same for every SaaS tenant; a plan may forbid third-party calls (403 PLAN_FORBIDS_THIRD), never the disclosure.

6.2 EU AI Act article 50 — the disclosure is not configurable

From 2 August 2026 a person must be told, audibly and at the start, that they are talking to AI. Fines reach €15 million or 3 % of worldwide turnover. Every third_party call begins with, verbatim:

• sk: "Dobrý deň, volám vám ako automatický hlasový asistent. Tento hovor vedie umelá inteligencia."
• en: "Hello. I am an automated AI voice assistant. This call is conducted by artificial intelligence."

• The callee is muted and barge-in is off while it plays; the model does not speak until it has finished.
• "Finished" is measured on audio actually sent (at least 0.25 s per word), not on time.
• An error before the end, or no finish within 20 s (adjustable 8–30 s), hangs up the call.
• Neither the text nor the minimum length is a setting — not in the console, a file, a variable, a plan or the branding. A call is only placed in a language for which a disclosure exists.

6.3 US TCPA

Since the FCC declaratory ruling of February 2024, AI-generated voices are "artificial" under the TCPA: statutory damages of $500–1,500 per call, with no aggregate cap. California AB 2905 adds an AI disclosure duty for autodialled calls. Calling users on their own verified number with their consent is the product; anything else is your legal responsibility.

6.4 No cold calls

Campaign or cold dialling is not implemented and never will be. --ring cold ends with RING_FORBIDDEN and exit code 2 before the network is touched. There is no bulk dialler, no list import and no function that takes a list of recipients. SMS and WhatsApp go only to the user's own verified number — no function has a recipient parameter. Automated calls are limited to 3 per hour, texts to 6 per hour and 30 per day.

6.5 GDPR: export and delete

Deletion is refused during a live call or a running job. Deleted is deleted: there is no backup unless you make one. Inferred profile facts are always marked as inferred and can be removed with one click.

6.6 NLTK punkt_tab — needs legal review

pipecat splits the model's text into sentences with NLTK's punkt_tab data; without it the bot is silent after the disclosure. VOX downloads it on your machine (python -m voice setup-nltk, zip pinned by SHA-256) — it is not in this package. The nltk_data repository is Apache-2.0 at repository level, but punkt_tab has no licence statement of its own and its English model was trained on Wall Street Journal text from the Penn Treebank (LDC), a corpus under its own licence. Whether that model may be used commercially is not established — have it reviewed before you sell a service built on it. A Docker image you build contains it.

6.7 LGPL dependencies installed by pip

All direct dependencies are MIT, BSD or Apache-2.0, and no GPL or AGPL code is part of VOX. Three transitive components are LGPL-2.1: soxr and num2words (required by pipecat) and libsndfile (bundled inside the soundfile wheel). pip installs them on your machine; they are never copied into this package, and must not be vendored into it. If you distribute a built image, the LGPL notices must travel with it.

7. Updating and migrations

1. Back up app/data/ (Docker: the vox-data volume). It holds the database, every tenant, and secrets.env — protect the backup like the keys.
2. Replace the code with the new release; keep app/data/, deploy/vox.env and your proxy configuration.
3. pip install -r voice/requirements.txt (or deploy/install.sh; Docker: docker compose up -d --build).
4. SaaS: python -m voice saas migrate. Migrations are Python modules in app/voice/saas/migrations/, applied in name order and recorded in the database; each runs once.
5. Restart the service and run python -m voice check.

The version is in app/voice/VERSION; the changes in CHANGELOG.md. pipecat-ai is pinned — a new pipecat version should only be adopted after testing barge-in and the disclosure on a live line.

8. Troubleshooting

9. FAQ

Does it work without any key?

The onboarding, profile and briefing run keyless (the briefing then uses a deterministic composer instead of Claude). python -m voice check runs keyless. Calls, research and mail triage need keys.

Has it been tested on real calls?

No. Everything is tested offline in the real pipecat pipeline with fake services. Barge-in timing values are defaults, not measurements, and speech quality over an 8 kHz line (English or Slovak) is unverified.

Can I turn off the AI disclosure, or change its text?

No. It is not a setting and must not become one (6.2).

Can VOX call lists of people?

No, never (6.4).

Is there an English user interface?

Yes. The console, public site, operator panel, CLI and documentation are English. Calls speak English by default; Slovak is available as an optional call language.

Which telephony providers are supported?

Twilio. Telnyx is known only to the terminal onboarding, which only rehearses a call.

Can the SaaS operator read users' transcripts?

Not through the panel. The data is on your server, so treat it under your privacy policy.

Does it contact MIKODES?

No licence check, no phone-home, no telemetry.

Can I try it with sample data?

python scripts/make_demo.py /path/to/new-dir builds a clearly labelled DEMO data directory (demo operator, "Demo Tenant 1…5", demo plans, signed demo Stripe events) without touching the network. It refuses app/data and any non-empty directory. Never serve a demo directory publicly — its passwords are printed.

10. Credits and licences

VOX itself is proprietary (see LICENSE). Third-party components keep their own licences and are installed by pip / npm / Docker on your machine, not bundled. Full record: SOURCES.md.

No GPL or AGPL component is part of VOX. Note: OHF-Voice/piper1-gpl is GPL-3.0 — if you ever add local TTS, use the original MIT rhasspy/piper.

11. Changelog

2.0.0 — 2026-09-24

The first numbered version.

• SaaS mode (python -m voice saas, saas migrate, saas create-operator): public site with sign-up, per-tenant console at /app/, operator panel at /op/, accounts with scrypt, sessions and CSRF, operator TOTP, plans and quotas, usage ledger, credit packs, Stripe Checkout, Customer Portal and a signed idempotent webhook, analytics from recorded rows only, branding, tenant web OAuth for Gmail and Calendar, a multi-tenant worker and media server, and call minutes billed from Twilio's status callback.
• Unchanged: the three call rings and the non-configurable AI disclosure, for every tenant. Single-user mode runs as before.
• Still unverified on live services: calls, SMS, Stripe payments, Google sign-in, research.

Earlier development (phases 1–2 and waves 1–5, unnumbered) is listed commit by commit in CHANGELOG.md.

12. Support

Included: installation as described here (Docker, installer, systemd, proxy); bugs in the VOX code, fixed in a following release; questions about the safety rules and call rings.

Not included: accounts and billing with Anthropic, ElevenLabs, Twilio, Stripe or Google; custom work, other telephony providers or languages; legal advice on third-party calls; tuning barge-in on your specific line; third-party MCP servers and their licences.

When asking for help, include the output of python -m voice check and the relevant log lines (data/logs/vox.log is scrubbed of keys). Never send your keys — nobody from support will ask for them.

Support contact: [to be filled in by the author before publication]
